# Project 1: Machine Learning Experiments with Tic Tac Toe

## Due: Tues Sept 27 (11:59 PM)

This project involves experimentation with simple classifiers and regressors: linear regression, linear SVM, k-nearest neighbors, and multilayer perceptron. Feel free to choose whichever language and libraries you prefer.

We suggest to use Python and the scikit-learn module. We also recommend to use the multilayer perceptron classes in scikit-learn. This requires the development version 0.18dev, which must be installed from source.

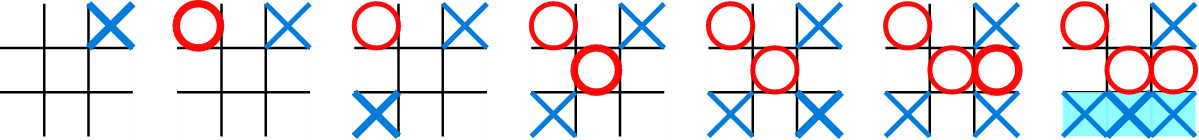

## Overview A game of Tic Tac Toe (from )

The goal for this assignment is to explore the performance of classifiers and regressors on the simple game of Tic Tac Toe. If you are not familiar with this game, please first learn the rules of the game.

For a simple 3x3 Tic Tac Toe game, the optimal game play can be obtained trivially by using minimax. However, more complex games such as Go have larger state spaces that require machine learning to evaluate the quality of an intermediate game board. See for example the Nature paper on Google's AlphaGo, which recently beat professional Go player Lee Sedol.

In this assignment, we explore the performance of simple classifiers and regressors on synthetically generated Tic Tac Toe games. The two players in these games are both computer (AI) players, with the X player denoted as +1, the O player denoted as -1, and empty squares denoted as 0. In the synthetically generated games, the players make optimal moves in these synthetic games. Your goal is to learn from these games to produce reasonable moves for player O (-1).

## Datasets

We provide three datasets for this assignment:
• Final boards classification dataset. This is a binary classification task for boards where the game is over. The input features are x0, ..., x8, the states of each Tic Tac Toe square:

 x0 x1 x2 x3 x4 x5 x6 x7 x8

The output feature y is the winning player. Each line of the input file lists the input features followed by the single output feature, as: x0, ..., x8, y.

• Intermediate boards optimal play (single label). This is a multi-class classification task where the board is set up so that it is O player's move, and the goal is to predict the next move that is optimal for the O player (i.e. player -1). Inputs are x0, ..., x8, the states of the Tic Tac Toe squares for a given board, and the output y is the index of the best move for the O player (player -1).

• Intermediate boards optimal play (multi label). In fact, there are usually multiple optimal moves. This dataset can be viewed either as a regression or a classification problem with multiple output labels. Inputs are x0, ..., x8. The outputs are y0, ..., y8, where yi is 1 if the given square is an optimal move for player O, otherwise it is 0. Each line lists the xi inputs followed by the yi outputs.

These datasets can be trivially loaded into Python by loading the data matrix and then selecting out columns from it:

```>>> import numpy
>>> X = A[:,:9]           # Input features
>>> y = A[:,9:]           # Output labels
```

## Assignment requirements

1. Report performance of these classifiers on the above two classification datasets: linear SVM, k-nearest neighbors, and multilayer perceptron. We have included links to the relevant classes in scikit-learn, in case you are using Python. You can manually choose the number of neighbors k, and the architecture of your multilayer perceptron, although be aware this introduces some overfitting risk. You should use k-fold cross validation (using e.g. 10 folds).

Please write a single classifier program that outputs the statistical accuracy and confusion matrices for both datasets and for each of these classifiers. Please normalize the confusion matrices so that each row sums to one. Note that none of the datasets are randomly shuffled so you should randomly shuffle the order of the dataset before using cross-validation.

2. Run these regressors on the intermediate boards optimal play (multi label) dataset: k-nearest neighbors, linear regression, and multilayer perceptron. For linear regression, implement the solution yourself via the normal equations derived in class. Note that one linear regressor can be trained independently for each output. For simplicity, you can use a squared loss function.

Write a single regressor program which evaluates each of these regressors. Since this is really a multi-label classification problem that is being treated as a regression problem, please report the accuracy of the multi-label regressor as if it were a classifier, by rounding the output of each regression output to either 0 or 1 and comparing with the testing data. Use k-fold cross-validation also when assessing the accuracy for this part.

3. Make a writeup, where you report the accuracy and normalized confusion matrices for the 3 classifiers, and the accuracy for the 3 regressors. Explain which method worked best for classification and for regression, and why. Investigate (and report) what happens to the accuracy of the classifiers if they are trained on 1/10 as much data, or a substantial fraction of the ground truth labels are corrupted by random noise (this could be a simple way to model the inclusion of non-optimal gameplay in the training set). Explain why certain methods scale better to larger datasets than the others. Hint: the multilayer perceptron should work better than k-nearest neighbors regressors, but they both should have above 80% accuracy, and should play a decent game of Tic Tac Toe in the next step.

4. Implement a simple command-line (or Web-based) Tic Tac Toe game where a human (player X, i.e. +1) can play the best machine learning model (player O, i.e. -1). You can implement the computer player as follows: suppose the computer is given a current board. Then find the output of the regressor that is highest for the given board, which is not already taken by another player's move, and make the computer move that corresponds to the choice most preferred by the model. You can use the intermediate play classifier for the entire game. Describe in your writeup whether you can beat the computer, and how hard this is for the three regressors.

5. Optional extra credit: the above machine learning setup requires an expert human or computer player to observe and learn in a supervised manner from. You can explore the use of alternative techniques such as genetic algorithms.

## Clarifications

• For linear regression in the intermediate play datasets, you can consider there to be a nine vector output. You can produce 9 linear models, where each model regresses a given single output against all the inputs. When choosing the optimal move, you can compare the 9 continuous outputs of the linear models directly, and choose the move that has the highest output.

• For kNN and multi-layer perceptron, you can encode outputs as a 9 vector with zeros for all positions except the optimal move(s).

## Policies

Feel free to collaborate on solving the problem but write your code individually.

## Submission

Submit your assignment in a zip file named `yourname_project1.zip`. Please include programs that will automatically print the above requirements for the classifiers, the regressors, and a program that implements the Tic Tac Toe gameplay with a human.

Finally submit your zip to UVA Collab.
